Each Mangold Video Lab was individually planned and may contain different camera types and additional audio equipment. The general setup bears a lot of similar items and is based on the same principle:
oAll cameras are connected to a network switch (Power-switch), building a stand-alone network with the recording station.
oA microphone is connected to the input channel of an audio mixer.
oTo record the same audio for all videos, the output channels of the audio-mixer hold an audio cable that leads back to every single camera.

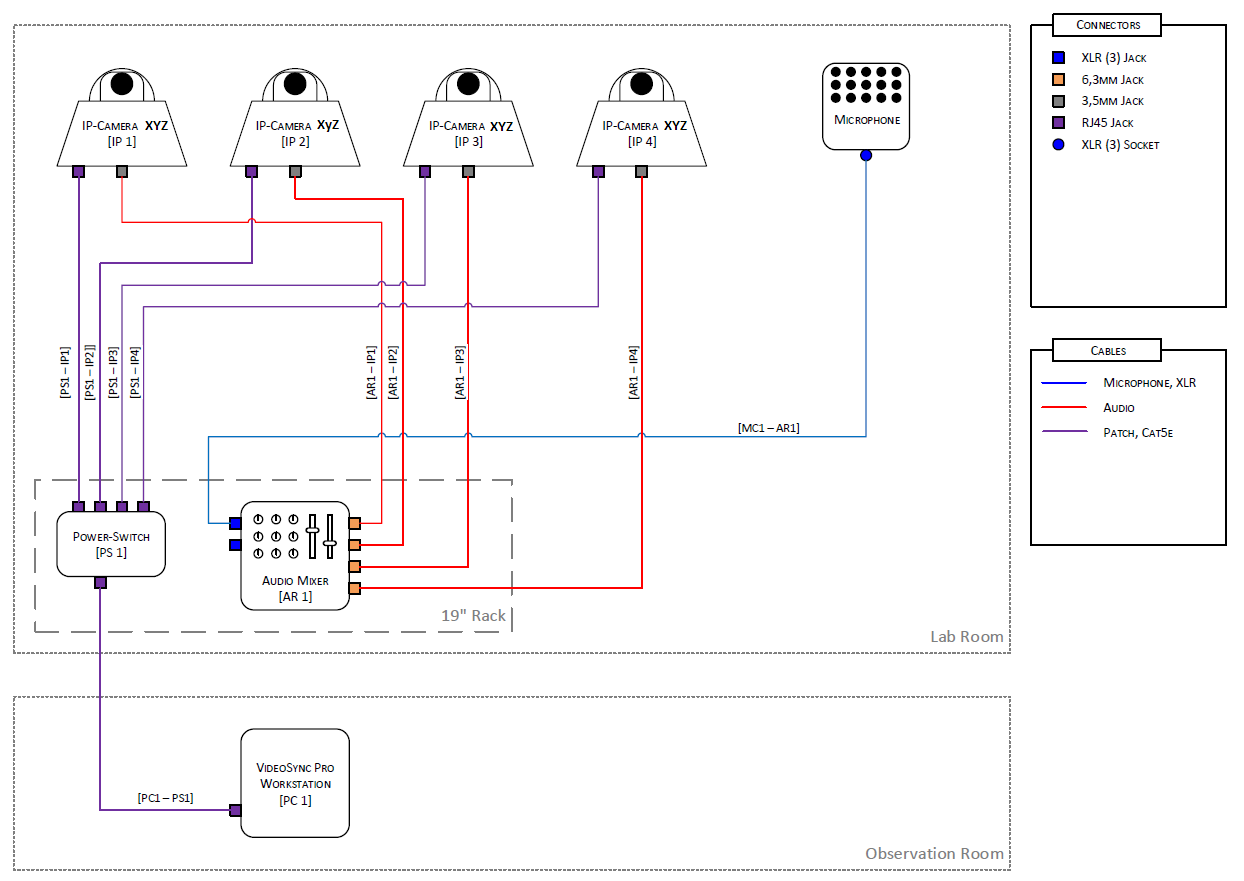

The generic cable plan looks like this:
General cable plan
