BIOPACK Systems

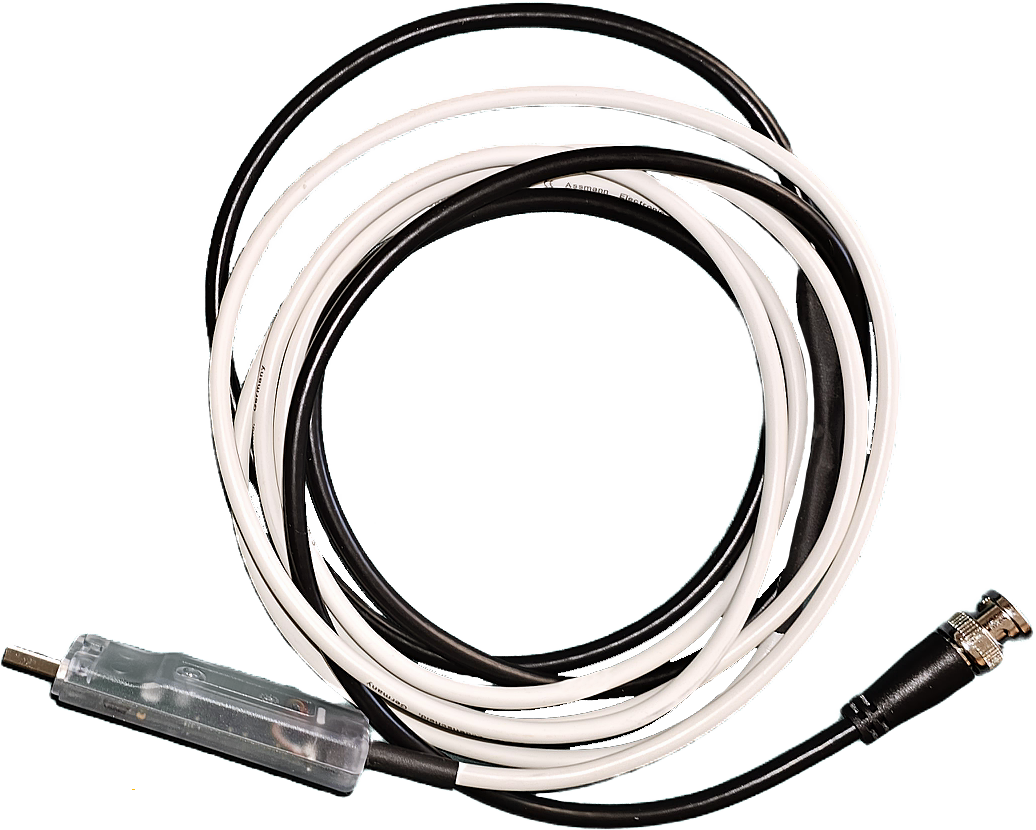

Biopack Systems can be physically connected using a Mangold USB TTL trigger cable.

You can use the TRIGGER Input of the BIOPACK system to receive a signal from our Mangold VideoSyncPro Studio Software.

To do so, you need activate the USB Switch trigger to send a signal to the BIOPACK system.

deditec_usb_relais_biopack_connection

USB Trigger Settings

VSP_Settings_Signal_USBswitch

Further details can be found in the topic USB Relay Signal.

Connection to BIOPAC

To send a Start/Stop signal from the Mangold Software to a 3rd party system (e.g. BIOPAC) the Mangold TTL cable needs to be connected to an appropriate input of that 3rd party device.

YOU SHOULD BE ABLE TO USE ANY TTL INPUT DEVICE / CONNECTION YOUR INDIVIDUALY CONFIGURED BIOPAC SYSTEM MAY ALREADY HAVE.

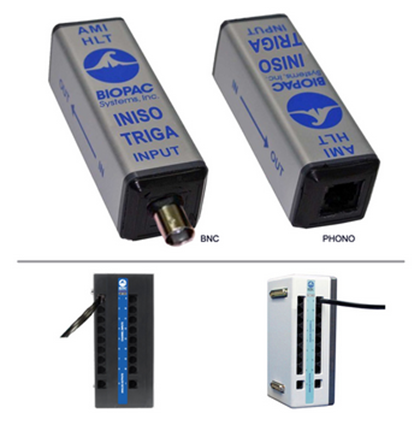

FOR EXAMPLE: BIOPAC TTL Trigger Isolation Adapter – INISO-TRIGA

Quote from BIOPAC Website: “This TTL input signal isolator may be used to safely connect TTL pulse signals from externally powered mains equipment to the inputs of an AMI100D or HLT100C module interface or of an IPS100D isolated power supply to mains powered external equipment. This isolation adapter connects a TTL level source to the AMI100D, HLT100C, or IPS100D module in the Control room”
BioPac-TTL-input

Input trigger

opulse profile: any TTL-type pulse

opulse width: 500 ns minimum (no maximum)

otriggering: Positive (rising ) edge of input pulse

Output pulse

oprofile: Positive pulse / pulse width: 2.2 msec (nominal) / pulse voltage range: 0-5 V (TTL)

oPropagation delay: ~ 100 ns  from rising edge of input trigger to rising edge of output signal

oInput Voltage: High 4-10 V; Low 0-1 V

oInput Current: High 5-15 ma; Low 0-0.25 ma

oIsolation: 1500 VDC

oConnectors: BNC female (Input) and Phone plug (Output)

oCable: 2 m; phone plug connectors

oInterface: Plugs directly into any of the 16 input channels on an AMI100D or HLT100C module interface or IPS100D isolated power supply

Text & image © BIOPAC  https://www.biopac.com/product/ttl-trigger-isolation-adapter

Please ask your BIOPAC representative which would be the best option for your setup and how to record such a TTL signal in that configuration.
