Create Fixed Intervals

To log observations in time samples (intervals), you can automatically create Events with a fixed length, that cover your required interval. You can create intervals in three different ways:

oCreate equally long DataSets, within the time frame covered by the currently selected DataGroup.

oCreate interval-based Events, within the time frame covered by the currently selected DataSet (= session).

oCreate interval-based Events, within the time frame covered by the currently selected Event.

To create predefined fixed intervals, follow these steps:

DataSet-based Time Sampling Session

Create DataSet

Before you can split an element, you need to specify its duration:

Manually create a new DataSet by choosing Start - Edit - Add DataSet Btn_AddSet.

Position the video to the start point of your session.

Drag the time value from the Timer display into the start time column of the selected DataSet line.

Position the video at the end of your session.

Drag the time from the time code field into the offset field of the selected DataSet

Note: You can also manually enter start- and end time value for this DataSet, corresponding to the start- and end times of the part of the video that needs to be analyzed. E.g. 00:00:02:10 – 00:12:00:09

TIP:To enter the time information with the help of short cuts:
- Select the DataSet and position your video at the start point of the session.
To enter the current time code, as displayed in the Video Controls, as the start time of the current selection:
@ macOS press: Command+1
@ Windows press: CTRL+1
- Position the video at the end of the test
To enter the current time code as the end time of the current selection:
@ macOS press: Command+2
@ Windows press: CTRL+2

Split DataSet

This methods automatically creates as many lines, with a predefine duration, as do fit into the selected time frame:

Select the DataSet in the current document (in our example, a duration of 10 minutes)

Click Transform - Restructure - Time Split Btn_SplitDataSet.

In the upcoming Dialog, enter your interval length as a time code value:

TC_intervalDialog

In this example, INTERACT creates 20 Events, each one with a duration of 30 seconds. (Summarized, the duration of those Events, covers the complete duration of your DataSet)

Split-Events

Similar to creating interval-based Events, that cover the total duration of the selected DataSet, it is possible to create intervals based on a selected Event. This can be useful if you logged Event-based situations, and need to add interval-based information for specific Codes only.

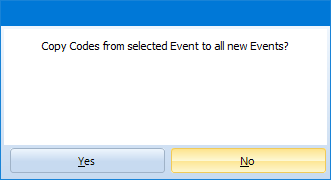

If you select one or multiple Events before you run the Time Split command, an additional message appears:

TimeSplit_CopyCodes

This allows you to copy all Codes from the selected Events into the new Intervals, to ensure the correct logical connection.

Split DataGroup

The same Time Split command can also be used to split a DataGroup into equal DataSets.

This can be helpful if you have a long video, in which every so many minutes a new session or task is started. You can automatically create DataSets for each of those periods.

This only makes sense if all Task/Session periods start at a fix interval of course.

IMPORTANT: In order to fill existing Events with Code information, you need to select the Coding Mode 'Refine existing Events' for your observational session!
